Vuzix M300XL (HIDDEN)

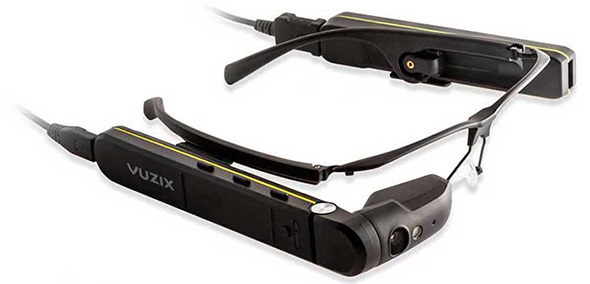

M300XL
Smart Glasses

The M300XL is the entry-level smart glasses device in our M-Series product line. These smart glasses provide an agile workplace, with fully connected staff and managers.
These comfortable smart glasses support a range of accessories which make them easily adaptable for operations within warehousing, field service, tele-medicine and manufacturing.
Industry operations are facilitated by the wide-range of apps available, a built-in HD camera, AMLCD display, and more. The M300XL is the ideal workplace companion for managers and business owners seeking to improve efficiency at a lower cost.
Contact Us

Vuzix M300XL (HIDDEN)

Providing Hands-Free Solutions Across Industries

The M300XL enables efficient and hands-free access to data in the workplace. It is loaded with features and apps for cost-effective operations across many industries.

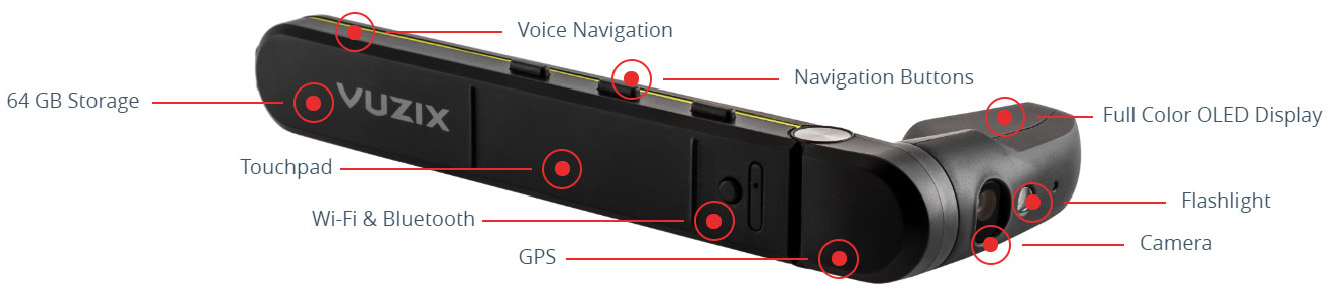

Features

Video

Specs

PRODUCT SHEET

Optics
Display resolution : NHD color displays
Aspect ratio: 16:9
Field of View (diagonal): 16.7 degrees, equivalent to a 5 in. mobile device screen seen at 17 inches
Brightness: >2000 nits
24 bit color
Supports left or right eye use
Dual Core Intel Atom CPU
2GB system RAM
Android 6 OS
64GB internal flash memory
Universal Mounting Options Available
Eyeglass frames with or without lens
Safety glasses
Hard hat mount
Headband mount
Controls
4 standard Android control buttons
Voice control - customizable and supports multiple languages
2 Axis touchpad with gesture
Battery
160mAh internal battery supports hot swapping of external batteries
860mAh smart external battery
Supports USB batteries providing at least 1 Amp
2 - 12 hours of operation based on external battery choice
MicroUSB 2.0 HS
Wi-Fi 2.4/5Ghz 802.11a/b/g/n/ac MIMO 2x2
BT 4.1/2.1+EDR
Integrated head Tracker
3-degree of freedom head tracking
3 axis gyro
3 axis accelerometer
3 axis mag/integrated compass
Audio
Ear speaker
Dual noise canceling microphones
Camera
Up to 10 megapixel stills
Up to 1080p 24fps video
Fast Auto-Focus (~1 second response time)
Optical Image Stabilization
Flash/scene illumination
Sensor Systems
Proximity inward facing
Proximity/ALS outward facing
Supported Languages
English
Spanish
French
German
Mandarin Chinese
Japanese
